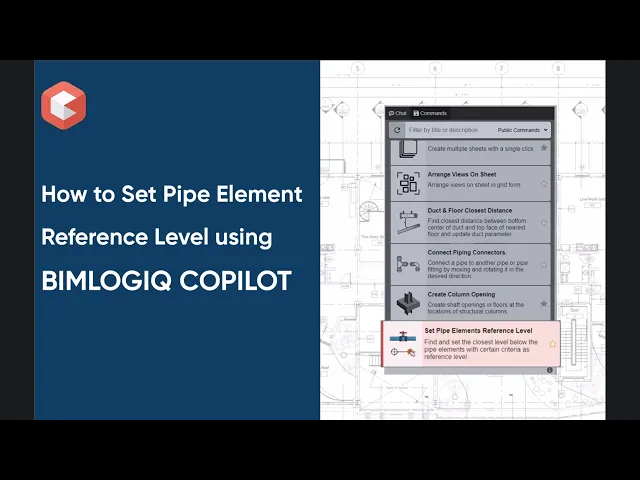

This command updates the reference level of selected pipe elements by assigning them to the nearest structural level. Users can also filter structural levels using name criteria (e.g., "TOS") to ensure alignment with specific project standards. It improves coordination between MEP and structural models while saving time on manual adjustments.

Select Pipes and Pipe Fittings

Users can choose individual pipes and fittings for level adjustment. This provides control over which elements are updated, avoiding unintended changes to unrelated components.

Assign the Nearest Structural Level

The command automatically identifies and assigns the closest structural level to the selected pipes or fittings. This ensures alignment with structural elements and enhances model consistency.

Apply Level Name Criteria

Users can specify level name filters (e.g., "TOS" for Top of Slab) to refine which levels are used for assignment. This feature helps enforce naming standards and ensures reference levels match project conventions.
