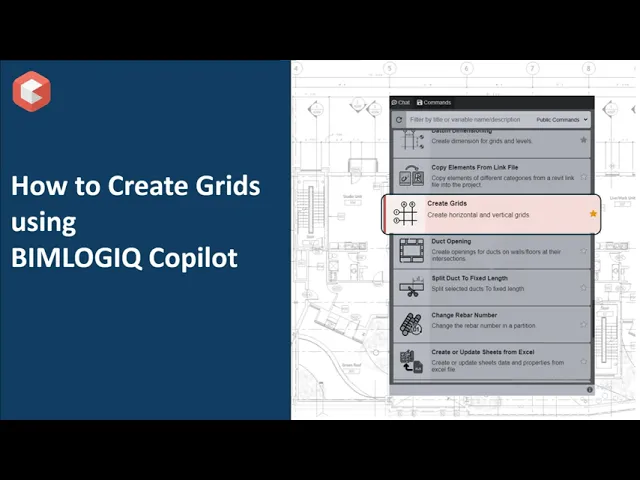

This command allows users to create horizontal and vertical grid systems with customizable properties. It provides options to define grid names, spacing, types, and origin coordinates to match specific project requirements.

Custom Grid Naming

Users can assign specific names to each generated grid line. Custom naming supports clearer identification of grids, especially in complex layouts and collaborative project environments.

Specified Grid Spacing

Users can set the spacing between adjacent grid lines. This ensures consistent and accurate intervals across the grid system, aiding in alignment and structural coordination.

Grid Type Assignment

The command allows users to select a grid type, such as architectural, structural, or custom-defined grids. This helps categorize and manage grids according to project standards.

Origin Point Definition

Users can define the coordinates of the origin point for the horizontal and vertical grids. This feature ensures that the grid system aligns correctly with the project’s reference points and base geometry.
