Manually splitting ducts into fixed lengths can be tedious and prone to errors, especially in complex HVAC design workflows. In this video, we demonstrate how to automate this process using AI by prompting BIMLOGIQ Copilot to segment ducts based on system type, such as "Supply Air," into precise lengths (e.g., 1400 mm). We also show how to save this AI-driven command within BIMLOGIQ Copilot, enabling you to reuse it for future projects and streamline your workflows.
Prompts

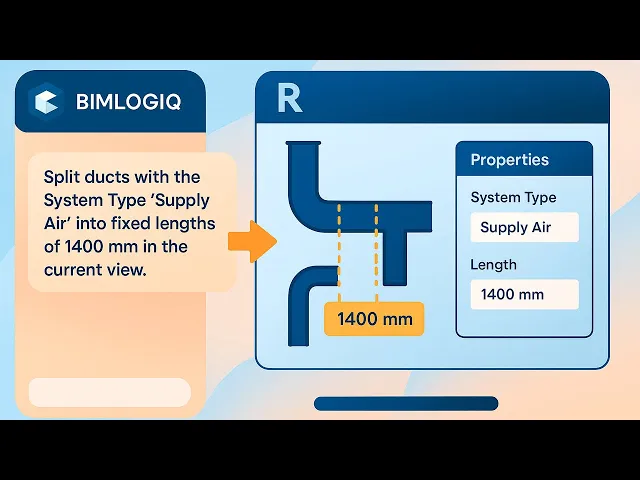

Prompt 1: Split ducts with the System Type "Supply Air" into fixed lengths of 1400 mm in the current view.
Prompt 2: Save the prompt and make the Length and system type parameter values into variables.
