Tag and Arrange
Automatically tags and positions elements with a single click, ideal for first-time tagging or new geometry.
Automatically tags and positions elements with one click.
How it works:

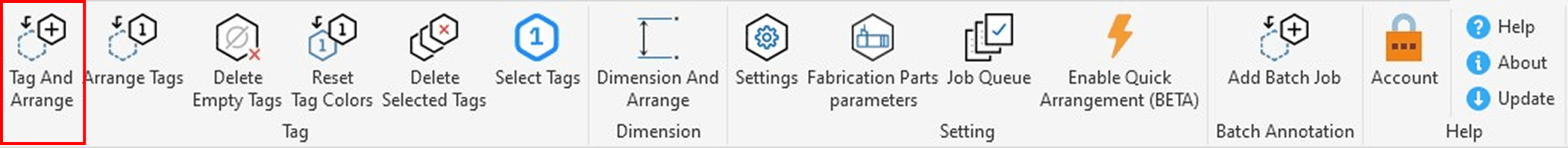

- Click Tag and Arrange on the Smart Annotation ribbon.

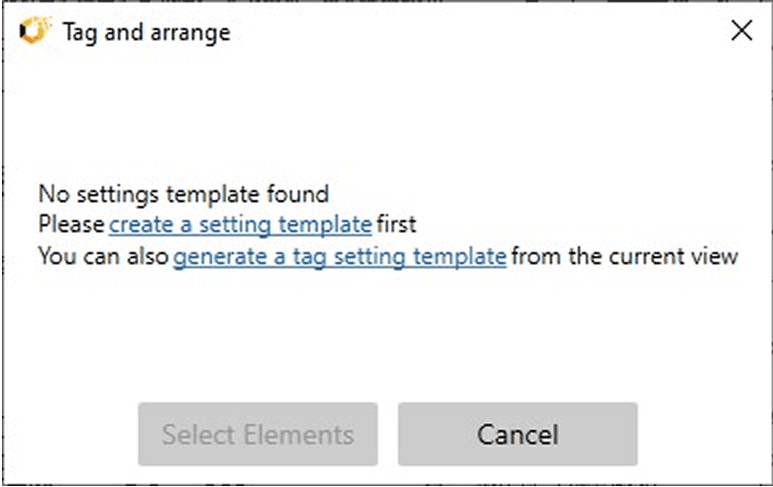

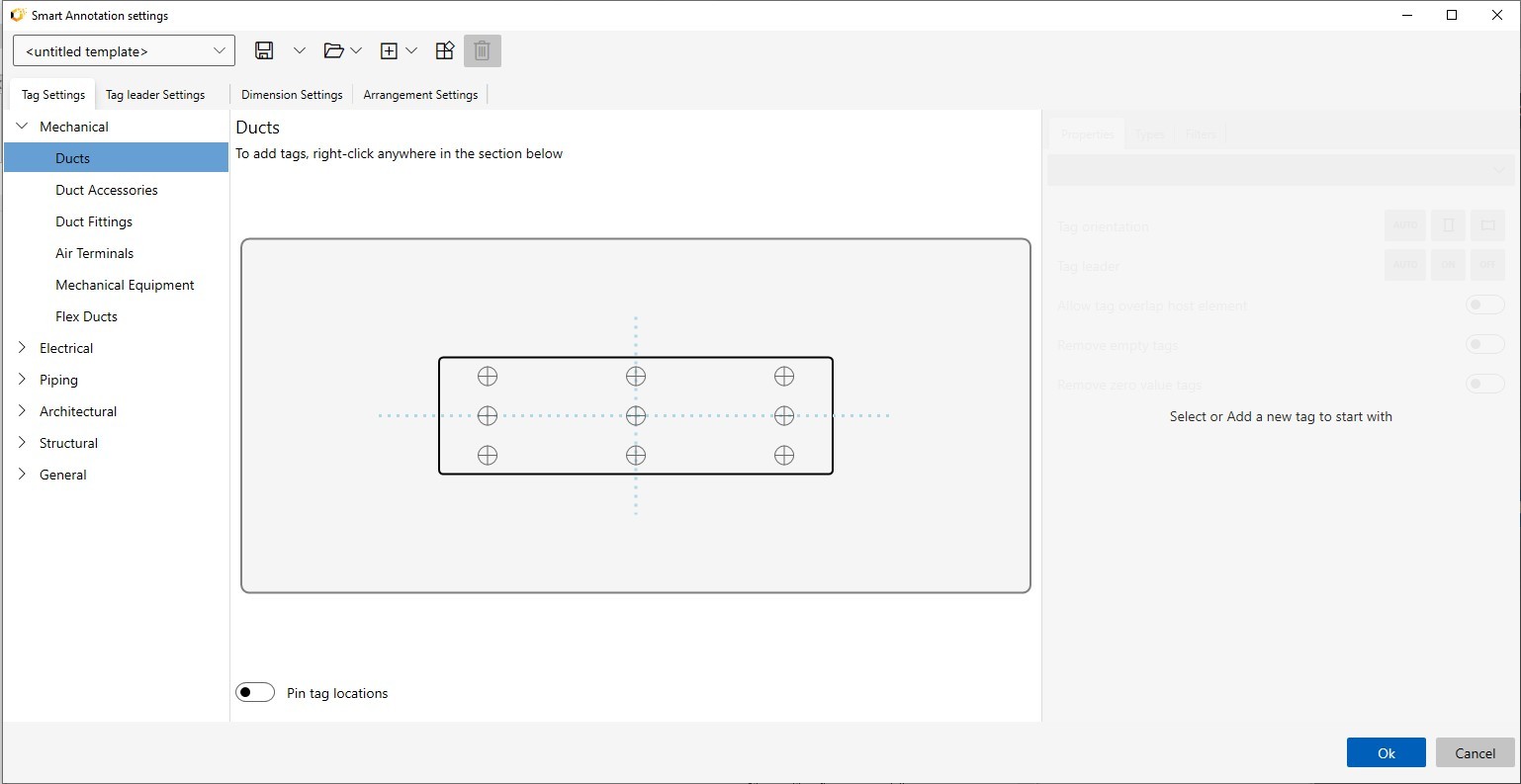

- Select your desired tag setting template (if prompted).
Click the elements to tag.
- Smart Annotation applies the settings and displays a completion message.
- Ideal for first-time tagging or new geometry.
