The Check for Overlaps with Title Block command in BIMLOGIQ Copilot helps Revit users maintain clean and professional sheet layouts. By automatically detecting elements that overlap with or extend outside the title block area, this Revit AI feature improves quality control, reduces errors, and ensures that drawing sets are ready for submission or printing.

Start Sheet Number

Define the starting sheet number for the overlap check. This allows users to limit the scan to begin from a specific sheet within the project.

End Sheet Number

Set the ending sheet number to restrict the check to a defined range. Only sheets within this start–end range will be analyzed for overlaps or misplaced elements.

Use Cases

• Quality Control Before Submission
  Identify and fix elements that overlap with the title block, ensuring sheets are clean, accurate, and ready for client or consultant delivery.

• Preventing Print Errors
  Detect misplaced elements outside the printable title block area, reducing the chance of errors that might otherwise go unnoticed before exporting or printing.

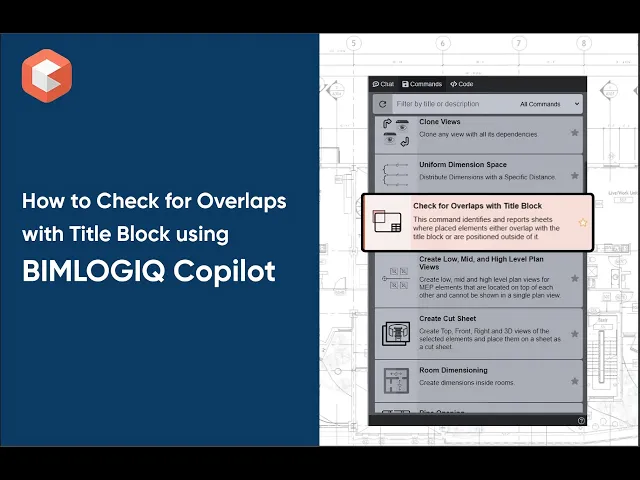

With BIMLOGIQ Copilot, your Revit AI assistant, sheet verification becomes faster and more reliable. Automating this process helps you maintain professional standards, eliminate overlaps, and deliver error-free drawing sets. Watch the video below to see this feature in action.
