The Room Dimensioning command in BIMLOGIQ Copilot automates the creation of linear dimensions inside selected rooms in a Revit project. By referencing wall faces or centerlines, and with options for total length and wall thickness adjustments, this Revit AI tool streamlines interior documentation and improves consistency across drawings.

Select Rooms for Dimensioning

Choose one or multiple rooms in the project. Dimensions will only be generated for the selected spaces, giving you precise control over where dimensions are applied.

Choose a Linear Dimension Type

Select a predefined linear dimension type from your project. This ensures the generated dimensions align with Revit’s standard styles and maintain consistent documentation.

Reference Wall Centerlines or Faces

Define whether dimensions should reference centerlines or faces of surrounding walls. This flexibility supports both design intent documentation and construction-level detailing.

Include Total Length

Optionally add a total length dimension across the span of the room, from the first to last reference point. This helps quickly understand the overall width or length of a space.

Include Wall Thickness

Adjust dimension references to account for wall thickness. When enabled, distances reflect true construction conditions rather than schematic spacing.

Use Cases

• Interior Layout Documentation
  Automatically create internal room dimensions for residential, commercial, or institutional layouts.

• Permit and Regulatory Drawings
  Generate precise internal dimensions required for building permit submissions and compliance reviews.

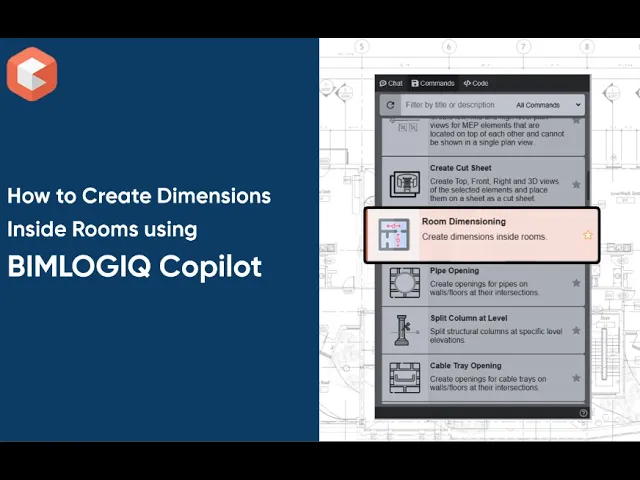

With BIMLOGIQ Copilot, your Revit AI assistant, interior room dimensioning becomes faster, more accurate, and standardized. Watch the video below to see how this feature simplifies room documentation in Revit.
