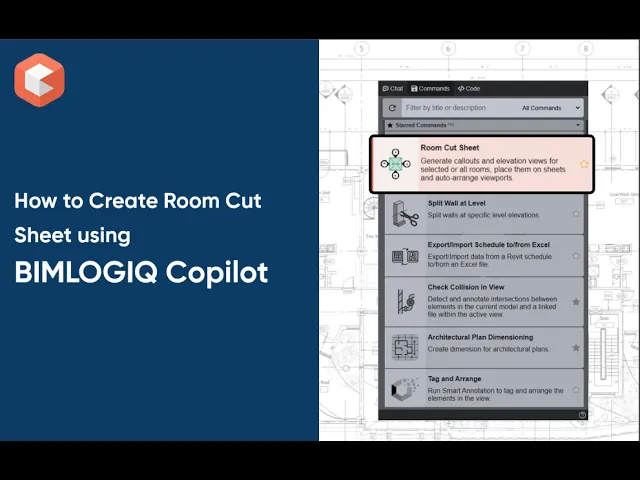

The Room Cut Sheet command in BIMLOGIQ Copilot automates the creation of callouts, elevation views, and sheets for individual or multiple rooms in a Revit project. By supporting configurable margins, naming prefixes, title blocks, and automated viewport placement, this Revit AI tool streamlines room-based detailing and standardizes documentation workflows.
By Choice
Select rooms from a list to generate callouts and elevations for only the spaces you need. Perfect for focused documentation on key areas.
By Selection
Pick rooms directly in the active view for instant callout and elevation generation.
All Rooms
Automatically generate callouts and elevations for every room visible in the active view. Ideal for comprehensive interior documentation.
Callout Margin
Define how much space around each room is included in the generated callout. The value respects the project’s unit settings for precision.
Callout Prefix
Apply a prefix to the names of generated callout views for easier organization and identification.
Elevation Prefix
Add a prefix to elevation view names to maintain consistency across documentation.
Sheet Name Prefix
Set a prefix for the names of generated sheets, keeping naming conventions uniform across the project.
Elevation Direction
Choose which elevations (East, North, South, West) to generate for each room.
Title Block
Select a title block family to apply to all generated sheets, ensuring consistent formatting.
Elevation View Family Type
Pick a specific view family type for the generated elevations to align with project templates and office standards.
View Scale
Define a consistent scale for all generated views to match project documentation requirements.
Use Cases
Room Documentation Automation
Generate complete sheets with callouts and elevations for selected rooms, supporting interior detailing, FF&E, and layout reviews.Standardized Output for Repetitive Layouts
Use prefixes and title block options to produce consistent documentation for multiple similar rooms or unit layouts.
